Cast Steel Globe Valves

[Class 150 & Class 300] Also Available with IBR III C Certificate

We have earned a repute of being the most trusted and dependable supplier of the economical and reliable range of Cast Steel Globe Valves.The main function of steam valves is to control the flow and pressure level of steam and heated water vapor.

SALIENT FEATURES :
1) Impact resistance property.
2) Withstand higher working pressure.
3) Long functional life.
4) Robust construction.
5) Approved under IBR (Indian Boiler Regulation Act).

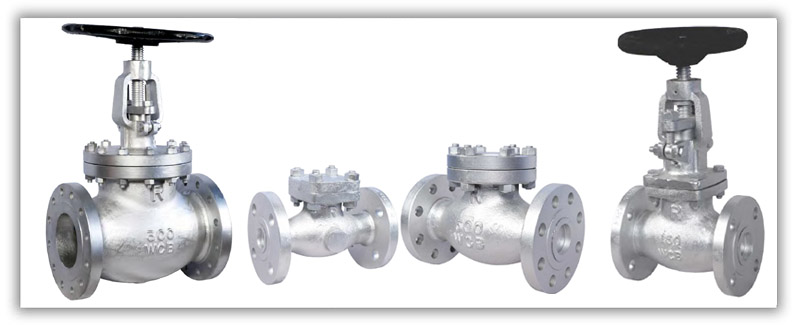

Cast Steel Globe Valves

SPECIFICATIONS
Cast Steel Globe Valves  TYPE  STOP VALVE, CHECK VALVE
 MATERIAL  CAST STEEL
 END CONNECTIONS  FLANGED
 END FLANGES  ANSI B - 16.5
 FACE TO FACE  ANSI B - 16.10
 WORKING PRESSURE  CLASS 150 - 22 Kg/sq.cm, CLASS 300 - 58 Kg/sq.cm
 TESTING PRESSURE CLASS 150 - 31 Kg/sq.cm. HYDRAULIC
 TESTING PRESSURE CLASS 300 - 78 Kg/sq.cm. HYDRAULIC
 MANUFACTURING STANDARDS  AS PER BS 1873
 TESTING STANDARDS  BS 6755 PART - I
 SIZE RANGE  1 - 6 INCH

CAST STEEL GLOBE CHECK VALVES (NRV)

PART MATERIAL
BODY ASTM A 216 Gr WCB
BONNET ASTM A 216 Gr WCB
DIAPHRAGM S.S. 410
SEAT S.S. 410
GASKET SPW SS 304 WITH CAF
STUD AND NUT A 193 Gr. B7 / A 194 Gr. 2H

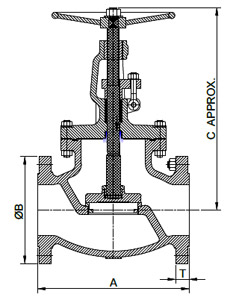

DIMENSIONS
CLASS 150
SIZE (mm)  A (mm) ØB (mm) T (mm) C (mm)
1" 127 108 14.2 75
1  1/2" 165 127 17.5 89
2" 203 152 19.1 102
3" 241 190 23.9 152
4" 292 229 23.9 166
6" 406 279 25.4 198
DIMENSIONS
CLASS 300
SIZE (mm)  A (mm) ØB (mm) T (mm) C (mm)
1" 203 124 17.5 75
1  1/2" 228.5 156 20.6 97
2" 267 165 22.3 120
3" 318 210 28.4 157
4" 356 254 31.7 170
6" 444 318 36.5 195

CAST STEEL GLOBE STOP VALVES

 DESCRIPTION  MATERIAL QUANTITY
 BODY  ASTM A 216 Gr. WCB
 BONNET  ASTM A 216 Gr. WCB
 SPINDLE  SS 410
 SEAT  SS 410
 DIAPHRAGM  SS 410 + STELLITED
 HAND WHEEL  C.I./CARBON STEEL
 EYE BOLT & NUT  A 193 Gr. B7
 CROSS BOLT & NUT  A 194 Gr. 2H
 STUD & NUT  A 193 Gr. B7 / A 194 Gr. 2H
 GLAND PACKING  GRAPH. ASBESTOS WITH SACRIFICIAL INHIBITOR &  INCONEL WIRE REINFORCEMENT
DIMENSIONS
CLASS 150
SIZE (mm)  A (mm) ØB (mm) T (mm) C (mm)
1" 127 108 14.2 227
1 (1/2)" 165 127 17.5 256
2" 203 152 19.1 280
3" 241 190 23.9 360
4" 292 229 23.9 430
6" 406 279 25.4 497
DIMENSIONS
CLASS 300
SIZE (mm)  A (mm) ØB (mm) T (mm) C (mm)
1" 203 124 17.5 224
1 (1/2)" 228.5 156 20.6 262
2" 267 165 22.3 291
3" 318 210 28.4 368
4" 356 254 31.7 430
6" 444 318 36.5 600
CLASS - 150 CLASS - 300
TEST PRESSURE Kg/cm (g) TEST PRESSURE Kg/cm (g)
HYDROSATIC HYDROSATIC
BODY SEAT BODY SEAT
31 22 78 58
Notes :
*Flanges drilling as per ANSI B 16.5.
*Dimenstion 'A' confirms to ANSI B 16.10
* Brass diaphragm nut is for below 1 1/2" class 150 & 300
