Furnace Doors

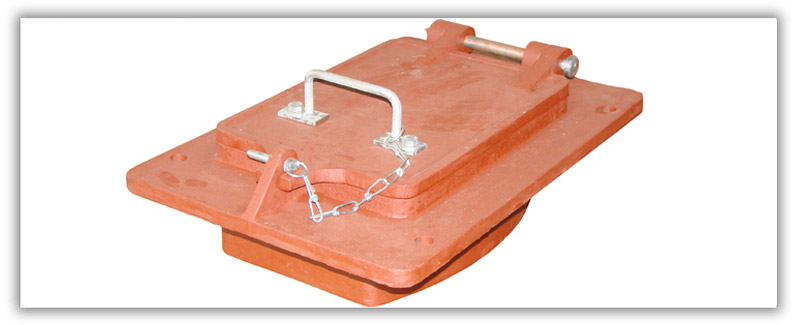

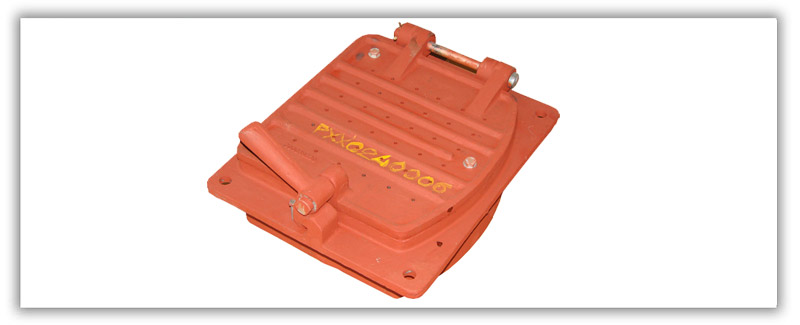

These doors are fitted in the boiler where the fuel is fired manually. They also work as air inlets for the boilers. Wherein F.D fans are not fitted. The selection of the doors size is based on different kind of fuel used on the boiler. These doors are available in various size and shape

Furnace Doors Manufacturer

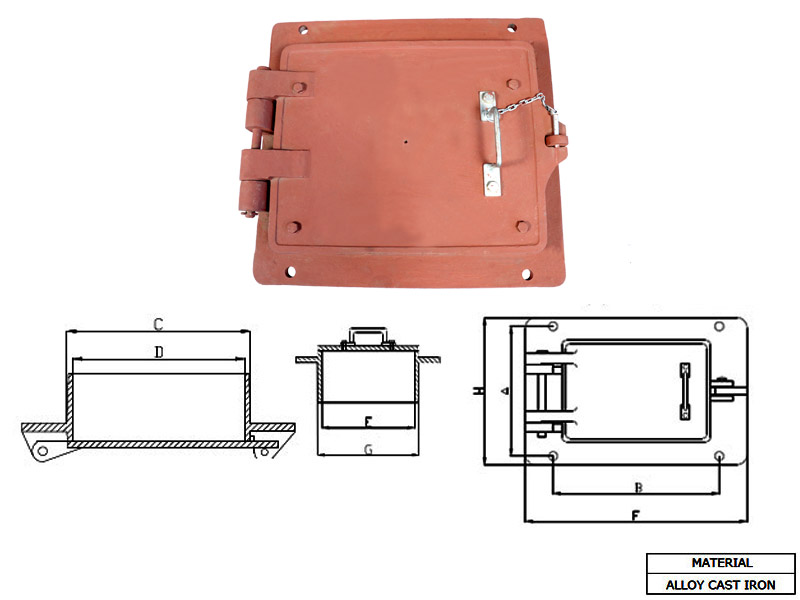

FURNACE DOOR 1

DIMENSIONS IN MM
SR NO A B C D E F G
D1 540 630 566 543 583 690 561
D2 375 480 416 393 373 540 396
D3 375 480 416 393 373 540 396
D4 540 480 416 393 538 540 561
D7 540 630 566 543 583 690 561
D8 375 480 416 393 373 540 396
Furnace Doors Manufacturer

FURNACE DOOR 2

DIMENSIONS IN MM
SR NO A B C D E F F H REMARKS
D5 540 480 540 507 402 640 435 610 FIRE DOOR
D6 375 480 430 403 273 640 300 425 ASH DOOR





Furnace Doors Manufacturer

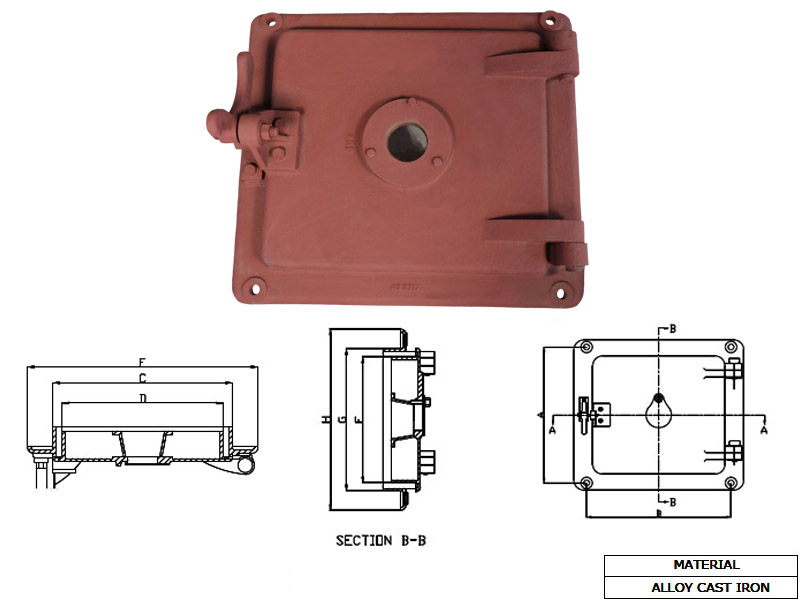

FURNACE DOOR 3

DIMENSIONS IN MM
SR NO A B C D E F F H REMARKS
D9 484 514 470 422 372 604 420 534 WITH PEEP HOLE
Furnace Doors Manufacturer

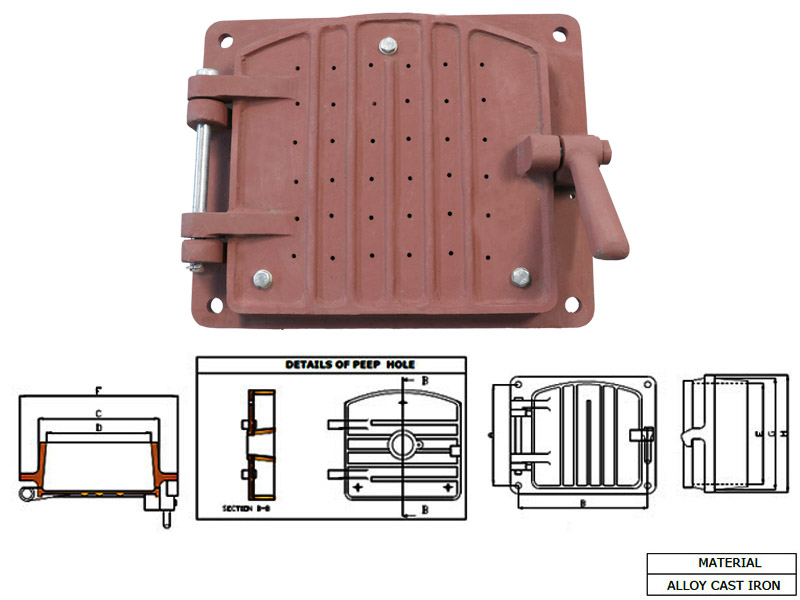

FURNACE DOOR 4

DIMENSIONS IN MM
SR NO A B C D E F G H REMARKS
D10 480 440 420 550 420 55 530 25 WITH PEEP HOLE
Furnace Doors Manufacturer

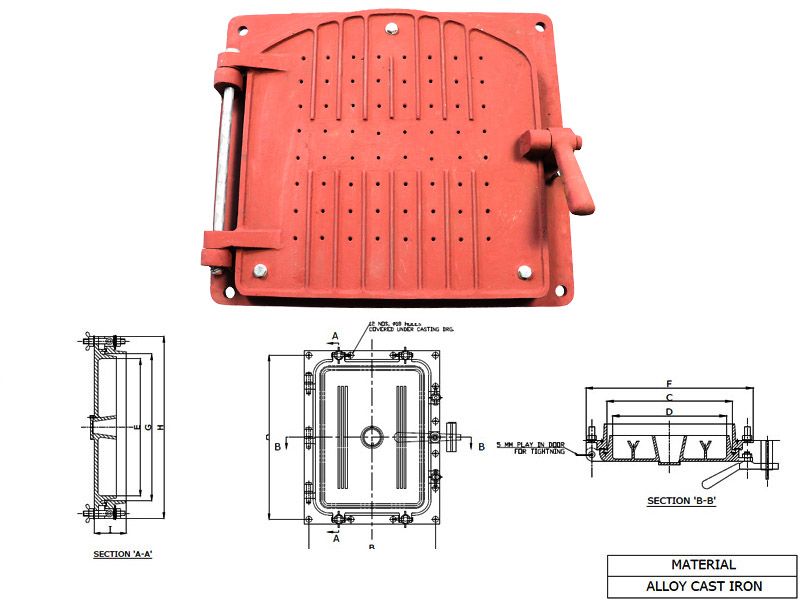

FURNACE DOOR 5

DIMENSIONS IN MM
SR NO A B C D E F G H I REMARKS
D11 738 570 460 418 588 610 630 780 137
Furnace Doors Manufacturer

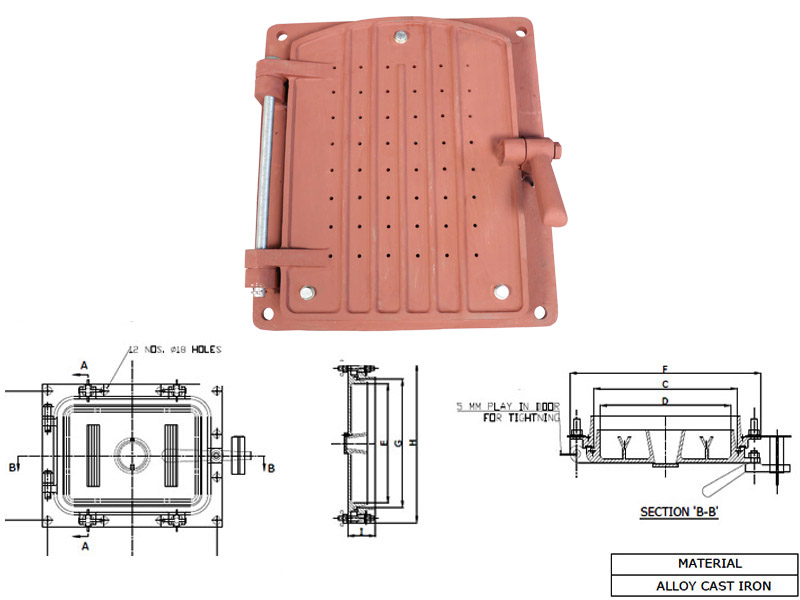

FURNACE DOOR 6

DIMENSIONS IN MM
SR NO A B C D E F G H I REMARKS
D12 438 570 460 418 288 610 330 480 137
