Nozzles

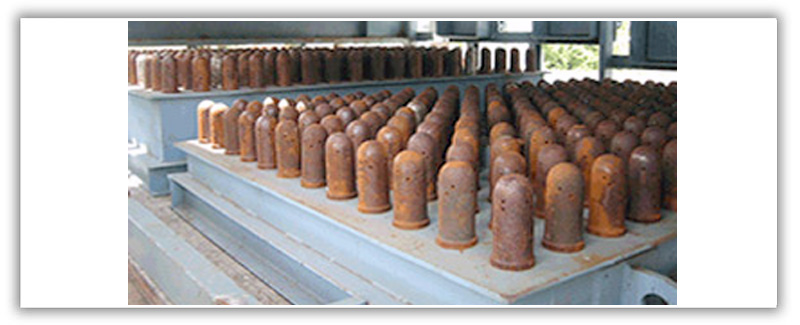

Nozzles are Used in fluid bed combustion boilers. These are manufactured in various chemical compositions to suit the different fuel’s used in the boilers. Variety of air hole combination’s are available.

Nozzles Manufacturer

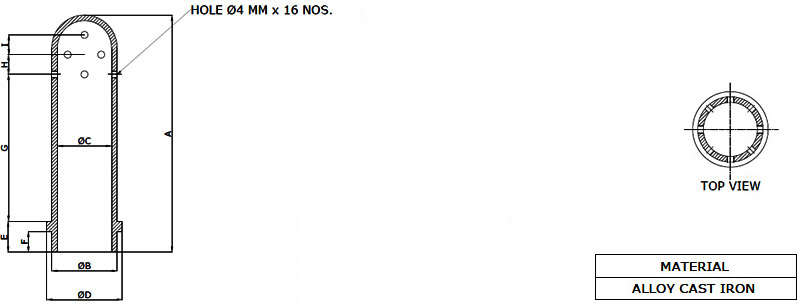

NOZZEL N1 & N2

DIMENSIONS IN MM
SIZE A ØB ØC ØD E F G H I
N1 110 51 40 58 20 12 10 R25 R18
N2 135 51 40 58 20 12 10 R25 R18
Nozzles Manufacturer

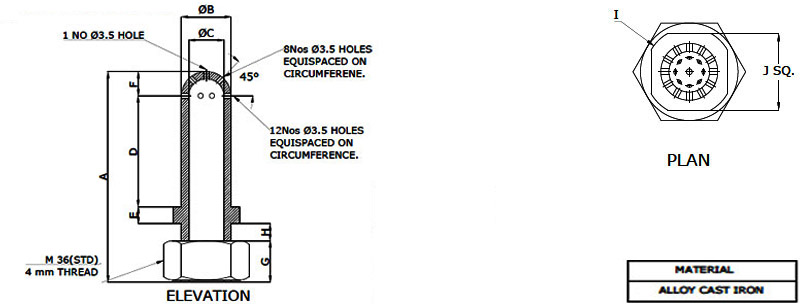

DOME TYPE NOZZLE

DIMENSIONS IN MM
SIZE A ØB ØC D E F G H I J
N3 148 35 25 78 12 17 29 12 R27 47
Nozzles Manufacturer

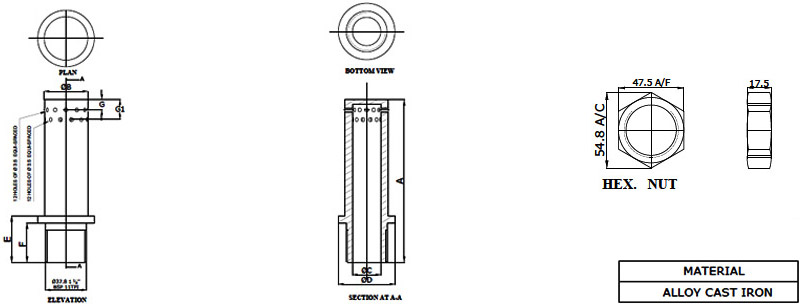

NOZZEL N4

DIMENSIONS IN MM
SIZE A ØB ØC ØD E F G H I
N4 135 50 40 58 20 10 64 24 27
Nozzles Manufacturer

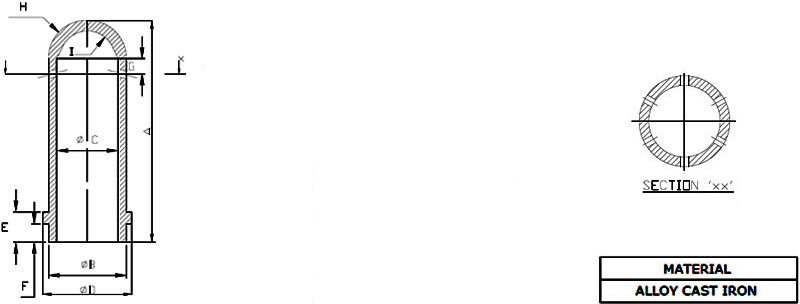

AIR NOZZE

DIMENSIONS IN MM
SIZE A ØB ØC ØD E F G H I
N5 138 38 31.5 44 18 12 85.5 11.5 11.5
Nozzles Manufacturer

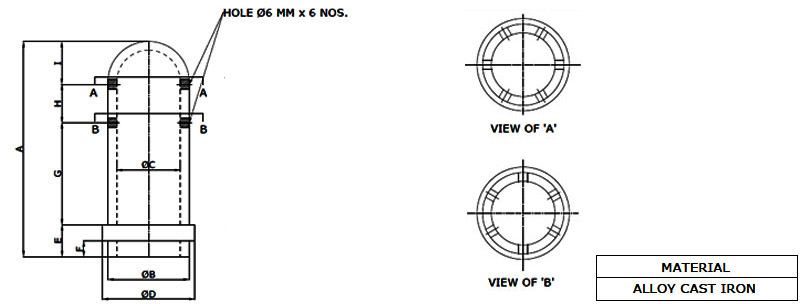

NOZZEL N6

DIMENSIONS IN MM
SIZE A ØB ØC ØD E F G G1
N6 150 40 26 52 43 36 12 18.5
