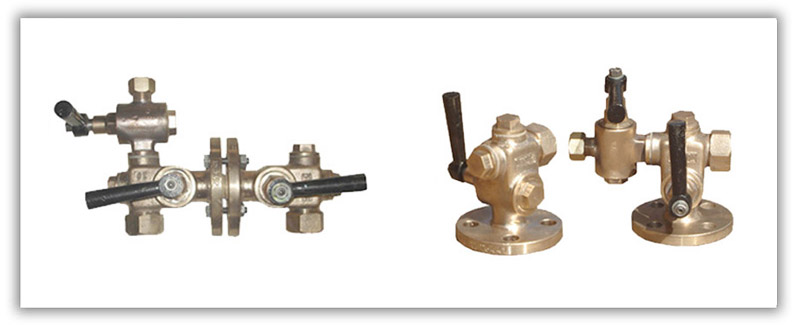

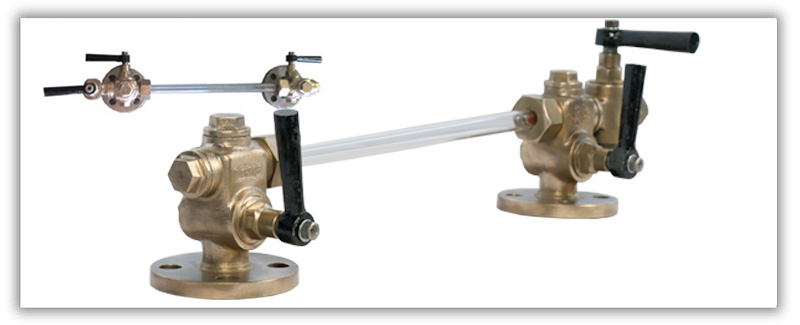

Bronze Gauge Glass Valves
[ Boiler Mounting ] Also Available With IBR III-C Certificate
We are Manufacturer, Supplier, Exporter of Boiler Mountings like Bronze Gauge Glass Valves and our setup is situated in Ahmednagar, Maharashtra, India.
Water gauge glass is a type of level sensor, a transparent tube through which the operator of a boiler can observe the level of liquid contained within.We specialize in designing these valves by using the advanced machines and technology that are timely upgraded according to the latest developments in the market.Further, we follow important quality testing policies, which have enabled us to maintain premium quality standards of the products. We also strive hard towards delivering the products within the given time period at our customers end.
SALIENT FEATURES :
1) Automatic shut off in water arm.
2) Right hand or left hand assembly.
3) Approved under IBR (Indian Boiler Regulation Act).
Bronze Steam Valve
| SPECIFICATIONS | |
| MATERIAL | BRONZE |
| END CONNECTIONS | FLANGED |
| END FLANGES | BS 10 TABLE-H |
| WORKING PRESSURE | 17.5 Kg/sq.cm. & TEMP UP TO 2250C |
| TESTING PRESSURE | 35 kg/sq.cm. HYDRAULIC |
| SIZE | 20 mm |
Features
| Automatic shut off in water arm. |
| Right hand or Left hand Assembly. |
| Glass Tube and Protector Glass Assembly can be supplied at extra cost. |
Technical Specifications
| SR. NO. | DESCRIPTION | MATERIAL |
| 1 | WATER ARM BODY | BRONZE (IBR 282 A GRADE B) |
| 2 | STEAM ARM BODY | BRONZE (IBR 282 A GRADE B) |
| 3 | DRAIN ARM BODY | BRONZE (IBR 282 A GRADE B) |
| 4 | SEAT | SS 304 |
| 5 | SPINDLE | SS 410 |
| 6 | DIAPHRAGM | SS 304 |
| 7 | BUSH | C.F.T. |
DIMENSION
| SIZE-mm | A-mm | B-mm |
| 20 | 135 | 13 |
 |
||

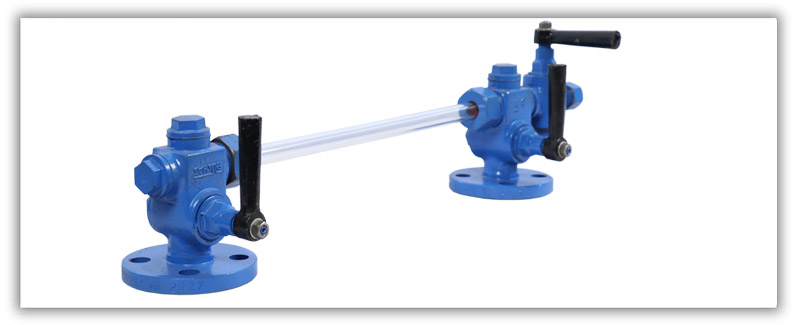

SG IRON GAUGE GLASS VALVE
| SPECIFICATIONS | |
| MATERIAL | SG IRON IS 1865 |
| END CONNECTIONS | FLANGED |
| END FLANGES | BS 10 TABLE-H |
| WORKING PRESSURE | 17.5 Kg/sq.cm. & TEMP UP TO 2250C |
| TESTING PRESSURE | 35 kg/sq.cm. HYDRAULIC |
| SIZE | 20 mm |
| SR. NO. | DESCRIPTION | MATERIAL |
| 1 | WATER ARM BODY | SG IRON IS 1865 |
| 2 | STEAM ARM BODY | SG IRON IS 1865 |
| 3 | DRAIN ARM BODY | SG IRON IS 1865 |
| 4 | SEAT | SS 410 / SS 304 |
| 5 | SPINDLE | SS 410 / SS 304 |
| 6 | DIAPHRAGM | SS 410 / SS 304 |
| 7 | BUSH | C.F.T |

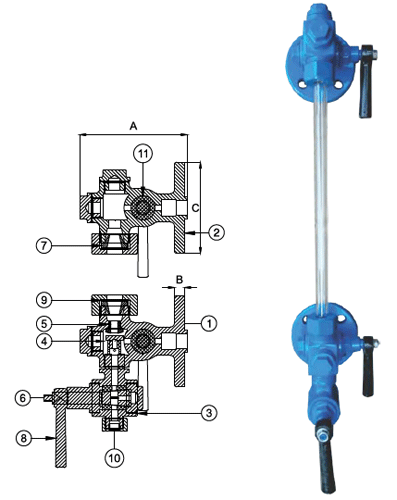

DIMENSION
| SIZE-mm | A-mm | B-mm | ØC-mm |
| 20 | 135 | 13 | 115 |
 |
|||
