Grate Bars / Stokers

We are Manufacturer, Supplier, Exporter of Grate Bars ( Boiler Grate Bars) / Stokers and our setup is situated in Ahmednagar, Maharashtra, India.

These grate bar / Stokers are used in the furnace upon which the fuel is burned. These bars are manufacture with various alloy compositions, depends on the fuel used in the boiler. The intermittent gap in the grate bar / fire bars allows the air flow for combustion. Proper selection of the gap is necessary to avoid the fuel from falling down, while burning.

Enquiry Now Download PDF

Products

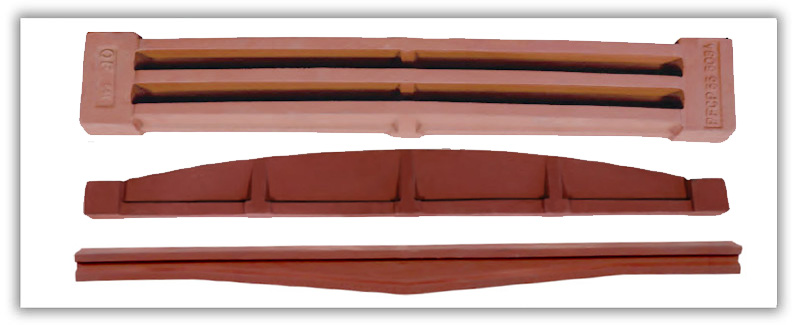

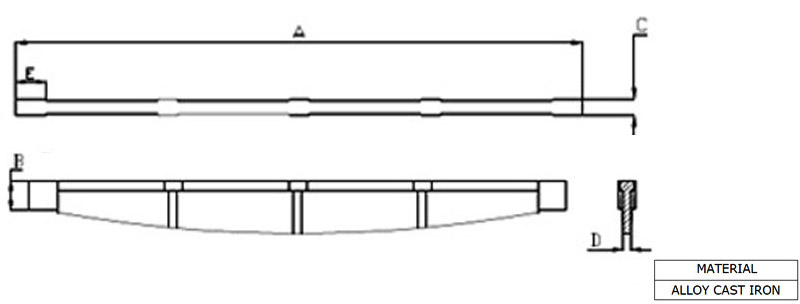

GRATE BAR SINGLE

DIMENSIONS IN MM
SR NO	A	B	C	D	E
G1	530	45	32	12	36
G2	890	47	32	12	47
G3	822	45	32	8	45
G4	730	50	32	8	45
G5	1010	50	32	8	45
G6	540	45	35	12	50
G7	615	45	35	12	50
G8	690	45	35	12	50
G9	578	45	32	12	55

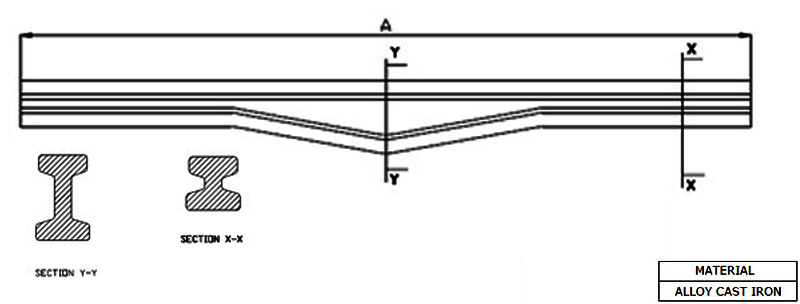

GRATE BAR SUPPORT

DIMENSION IN MM
SR NO	A
S1	740
S2	1066
S3	1422
S4	1132
S5	940
S6	1280
S7	1120
S8	800
S9	1150
S10	1030
S11	930
S12	1308
S13	642
S14	860
S15	980
S16	1010

Grate Bar Triplex

Modified version of single grate bar. Basically three grates bars are combined and manufactured as one piece. A homogeneous construction , allows, more heat dissipation , resulting in better heat resistance . These grate bars generally give a longer life.

Enquiry Now

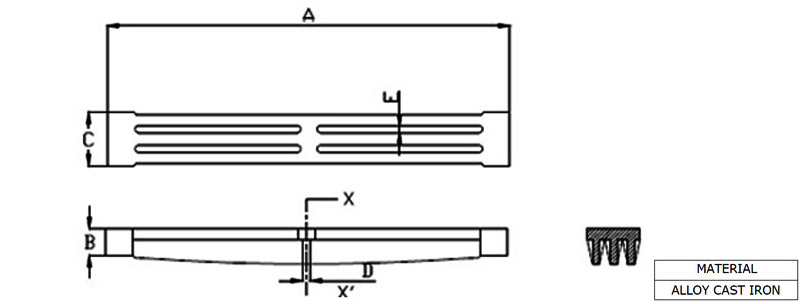

GRATE BAR TRIPLEX

DIMENSION IN MM
SR NO	A	B	C	D	E
T1	730	50	96	15	10
T2	530	50	96	15	10
T3	630	50	96	15	10
T4	690	45	105	15	15
T5	540	45	105	15	15
T6	615	45	105	15	15
T7	690	45	90	15	8
T8	615	45	90	15	8
T9	615	45	96	15	10
T10	540	50	90	15	8
T11	540	50	96	15	10
T12	578	50	90	15	8
T13	578	50	96	15	10
T14	700	50	105	15	15

Grate Bar / Stokers
