Cast Iron Steam Valves Manufacturer

Cast Iron Steam Valves

We are Manufacturer, Supplier, Exporter of Cast Iron Steam Valves ( CI Steam Valves ) and our setup is situated in Ahmednagar, Maharashtra, India.

We manufacture Cast iron steam valves in the compliance with industry laid specifications, using fine quality raw materials.The main function of steam valves is to control the flow and pressure level of steam and heated water vapor.

We have engaged ourselves in distribution and export of the premium quality range of Cast Iron Steam Valves.The products are widely used throughout the market for their superior quality and flawless performance. The products are highly efficient and are developed in strict adherence to the global standards of quality and efficiency. The use of premium and genuine base components ensure the prolonged service life to the products.

These cast iron valves are extensively acclaimed for their smooth finishing, rust resistance and easy functionality.

SALIENT FEATURES :
1) Superior quality.
2) Ease of operation.
3) Optimum performance.
4) High efficiency.
5) Approved under IBR (Indian Boiler Regulation Act).

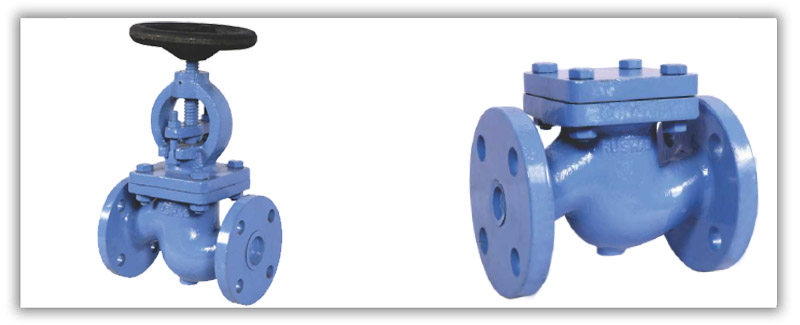

Cast Iron Steam Valves

DESCRIPTION MATERIAL
BODY CI IS 210 FG 150
BONNET  CI IS 210 FG 150
SPINDLE  SS. 410
GLAND CI IS 210 FG 150
BUSH G.M. IS 318 Gr.2
SEAT S.S.304
DIAPHRAGM S.S.304
DIAPHRAGM NUT BRASS IS 319
HAND WHELL CAST IRON

Technical Specifications

TYPE STOP VALVE, CHECK VALVE
MATERIAL CAST IRON
END CONNECTIONS FLANGED
END FLANGES BS 10 TABLE-H
WORKING PRESSURE 13 Kg/sq.cm. & TEMP UP TO 220°C
ESTING PRESSURE 26 kg/sq.cm. HYDRAULIC
MANUFACTURING STANDARDS AS PER BS 1873
ESTING STANDARDS BS 6755 PART - l
SIZE RANGE 15 - 150 mm

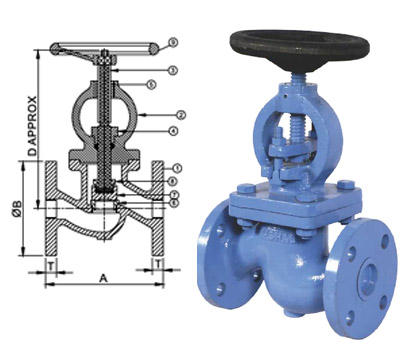

Cast Iron Stop Valve

BILL OF MATERIAL
SR. NO. PART MATERIAL
1 BODY CI IS 210 FG 150
2 BONNET CI IS 210 FG 150
3 SPINDLE S.S. 410
4 GLAND CI IS 210 FG 150
5 BUSH G.M. IS 318 Gr.2
6 SEAT S.S.304
7 DIAPHRAGM S.S.304
8 DIAPHRAGM NUT BRASS IS 319
9 HAND WHELL CAST IRON
Cast Iron Stop Valve

DIMENSION

SIZE A ØB T D
mm mm mm mm mm
15 130 114.3 12.7 185
20 140 114.3 12.7 205
25 152 120.65 14.3 218
40 203 139.7 17.5 258.25
50 254 165.1 19.05 278
80 310 203.2 22.2 344.5
100 360 228.6 25.4 436
150 480 305 25.4 511

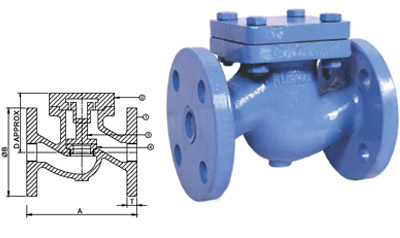

CAST IRON CHECK VALVE (NRV)

BILL OF MATERIAL
SR. NO. PART MATERIAL
1 BODY CI IS 210 FG 150
2 COVER CI IS 210 FG 150
3 DIAPHRAGM S.S.304
4 SET S.S.304
Cast Iron Stem Check Valve

DIMENSION

SIZE A ØB T D
mm mm mm mm mm
15 130 114.3 12.7 63
20 140 114.3 12.7 73
25 152 120.65 14.3 75
40 203 139.7 17.5 91
50 254 165.1 19.05 119
80 310 203.2 22.2 152
100 360 228.6 25.4 176.5
150 480 305 25.4 195.8
