SG Iron Gauge Glass Valves

We are Manufacturer, Supplier, Exporter of SG Iron Gauge Glass Valves ( Gauge Glass Valves ) and our setup is situated in Ahmednagar, Maharashtra, India.

We are enlisted as top company involved in offering a wide range of SG Iron Gauge Glass

With support of our excellent team workers, we have been delivering the best quality range of SG Iron Gauge Glass. This SG Iron Gauge Glass is stringently checked on series of quality parameters before being supplied to our clients. Clients can avail this SG Iron Gauge Glass from us at pocket friendly price.

Enquiry Now Download PDF
Products
Tags

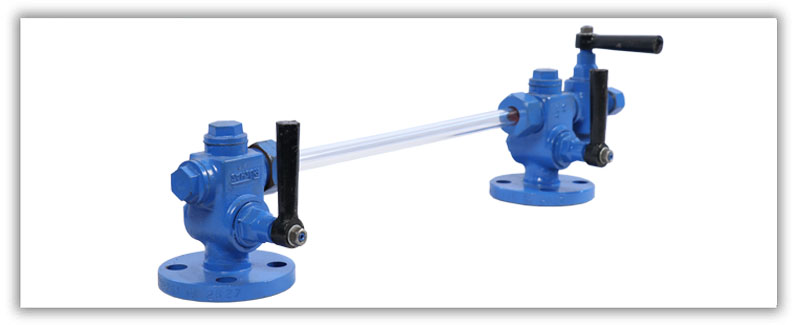

SG Iron Gauge Glass

SPECIFICATIONS
 MATERIAL SG IRON IS 1865
 END CONNECTIONS  FLANGED
 END FLANGES  BS 10 TABLE-H
 WORKING PRESSURE  17.5 Kg/sq.cm. & TEMP UP TO 225°C
 TESTING PRESSURE  35 kg/sq.cm. HYDRAULIC
 SIZE  20 mm

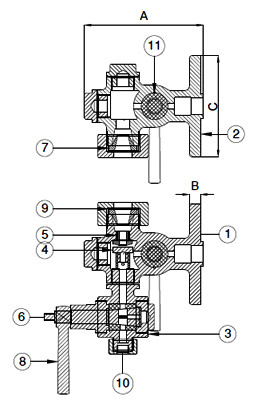

DIMENSION

SIZE - mm A - mm B - mm ØC - mm
20 135 13 115

Technical Specifications

SR. NO.  DESCRIPTION  MATERIAL
1  WATER ARM BODY SG IRON IS 1865
2  STEAM ARM BODY SG IRON IS 1865
3  DRAIN ARM BODY SG IRON IS 1865
4  SEAT SS 410 / SS 304
5  SPINDLE SS 410 / SS 304
6  DIAPHRAGM SS 410 / SS 304
7  BUSH C.F.T
